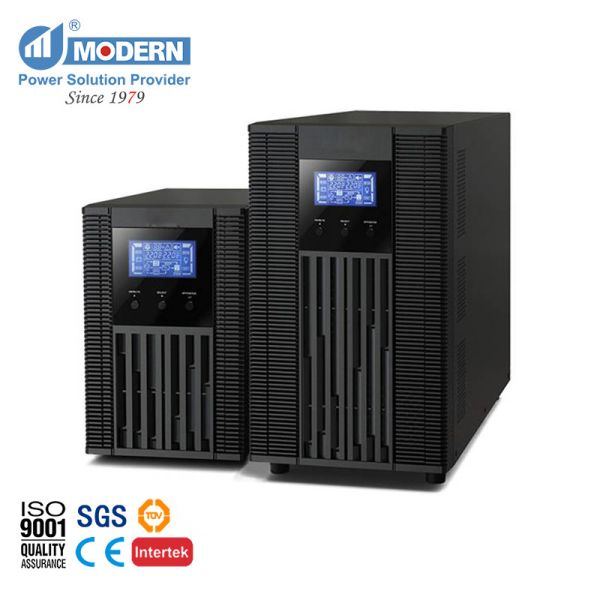

C1k Winner Online Uninterruptible Power Supply Ups 1000va Custom

Product Categories

Wenzhou Modern Group Co., Ltd. ( Wenzhou Modern Completed Electric-power Equipment Co., Ltd. )

Contact Now

Name: C1k Winner Online Uninterruptible Power Supply Ups 1000va Custom
Brand: Modern
Price: 1 USD

Brand Name : Modern

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Type : On-line

Current type : AC, stabilizer

Application : Computer, Other, Security / Monitoring / Alarm, education etc., financial

Frequency : 50Hz/60Hz, 50Hz/60Hz voltage regulator

Contact Now

Capacity	Rated Capacity		10000VA/8000W
Input	Voltage		200/208/220/230/240VAC
	Voltage Range		110-300VAC(Three Phase)@50% Load; 160-280VAC(Three Phase)@100% Load
	Frequency Range		40~70Hz
	Power Factor		≥0.99% @100% Load
Output	Voltage		200/208/220/230/240VAC
	Voltage Range(BATT. Mode)		±1%
	Frequency Range(Sync Correction Range)		47~53Hz or 57-63Hz
	Frequency Range(BATT. Mode)		50Hz±0.25Hz or 60Hz±0.3Hz
	Crest Factor		3:1
	THD		≤3% THD(Linear Load); ≤6% THD(Non-linear Load)
	Transfer Time	AC to DC	zero
		Inverter to Bypass	4ms
	Waveform(BATT. Mode)		Pure Sine-wave
Frequency	Power Mode		88%
	BATT. Mode		83%
Standard Machine	Battery Type		12V/9AH
	QTY		2
	Standard Charging Time		4 Hours Recover to 90% Capacity
	Max. Charging Current		1A
	Charging Voltage		27.4VDC±1%
Long-lasting Machine	Battery Type		Depend on Applicant
	QTY		2	3
	Max. Charging Current		1A/2A/4A/6A Adjustable
	Charging Voltage		27.4VDC±1%	41.0VDC±1%
LCD Display	Loading/Battery Capacity/Power Mode/BATT. Mode/Bypass Mode/Fault Indication
Alarm	BATT. Mode		Sounding every 4s
	Low Battery		Sounding every 1s
	Overload		Sounding every 1s
	Fault		continuously Sounding
Environment	Humidity		20-90% RH@0-40℃(No Condensing)
	Noise		Less than 50dB@1 meter
Control Management	Smart RS232/Optional USB		Support Window 2000/2003/XP Nista/2008, Window 7/8, Linux, Unix and Mac
	Optional SNMP		Power Management Support SNMP & Network Management

C1k Winner Online Uninterruptible Power Supply Ups 1000va Custom
